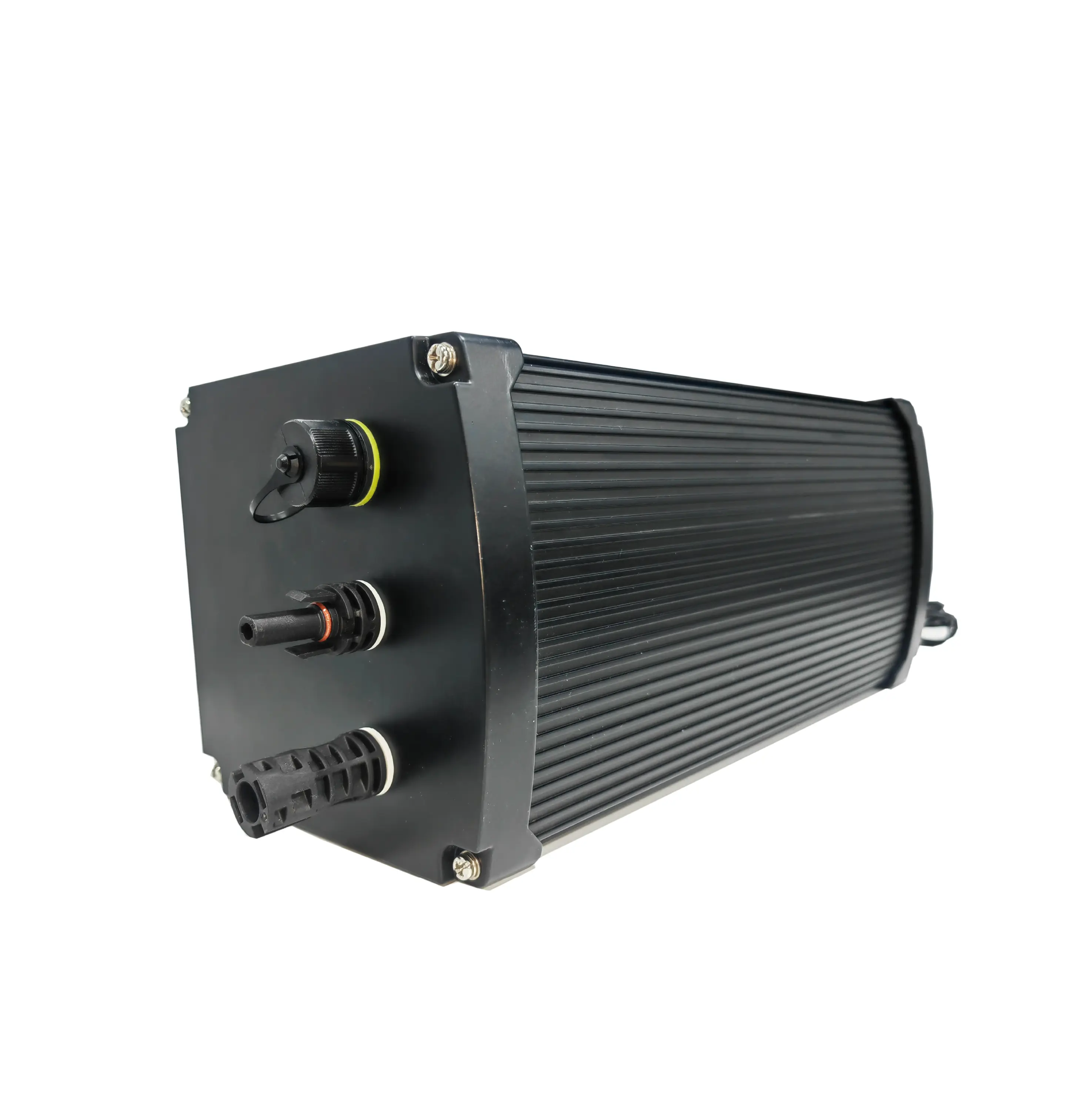

Solar Tracker Controller SurgeTrack TCU DC450

Name: Solar Tracker Controller SurgeTrack TCU DC450
Brand: Solarsurges Technology Co., Ltd.

Solarsurges SurgeTrack TCU DC450 is directly powered by external DC power supply.

Solar Tracker Controller Features: Powered by external DC power supply.

Tracking Solar Controller Advantages: This kind of solar tracker controller is dc power supply,

DC power supply 24V.

Output voltage 24V

Output power 450W

Basic Parameters of SurgeTrack TCU DC450

Tracking Parameters
Tracking Accuracy	＜ ±1°
Tracking Range	-60°~+60°
Control Method	Astronomical Algorithm + Position Sensor
Networking	Self-Forming Mesh Network (No need to configure each TCU separately)
Operating Modes	Auto/Fault/Night/Fixed Angle/Heavy Rain/ Strong Wind/Heavy Snow/Maintenance/Stop/Farm
Debugging Method	PC / Mobile / NCU
Daily Consumption	0.05kWh/Day
Motor Speed	Adjustable

Protection Parameters
Overcurrent Protection	Supported
Over/under Voltage Protection	Supported
Wind Protection	Optional	Requires Anemometer
Snow Protection	Optional	Requires Snow Depth Meter
Rain Protection	Optional	Requires Rain Gauge
Night Return	Supported
Backtracking	Supported

If you have any questions about Solarsurges solar tracker controller and services, please contact us or complete the online form.
